Product Description
TDS
Density 1.041 g/cm³ Melt Flow Rate 17.5 g/10min Tensile Strength 35.8 MPa Elongation at Break 5.5 % Flexural Strength 60 MPa Flexural Modulus 1162 MPa Unnotched Impact Strength 29 KJ/m² Heat Deflection Temperature 92°C Printing Temperature 220-260°C Bed Temperature 80-100°C
Why Choose ABS-CF? Superior Strength, Heat Resistance & Versatility Compared to PLA-CF & PETG-CF
Recommended 3D Printers Settings
Bed Temperature: 90-100°CPrinting Temperature: 220-260°CChamber Temperature: 45-60°CCooling Fan Speed: 0-80%Printing Speed: ≤250mm/sAdhesion Method: GlueNozzle Material: Hardened Steel NozzleNozzle Size: 0.4mm / 0.6mm / 0.8mmBed Type: Engineering Plate / High-Temperature Plate / Textured PEI Plate (60-80°C)Recommended Support Materials: Breakaway-80, AquaSol-120Drying Requirement: RecommendedStorage Conditions: <20% RH (Sealed with desiccant)
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Tensile Strength
35 MPa 40 MPa 52 MPa 65 MPa 28 MPa 58 MPa
Elongation at Break
2.3 % 12% 310 % 5 % 3% 8 %
Flexural Strength
61 MPa 64 MPa 67 MPa 120 MPa 40 MPa 88 MPa
Flexural Modulus
3071 MPa 2200 MPa 1600 MPa 2900 MPa 1440 MPa 3593 MPa
Printing Temperature
220-260°C 220–260°C 220-280°C 220-260°C 220–260°C 230–280°C
Moisture Sensitivity
Low Low High Low Low High

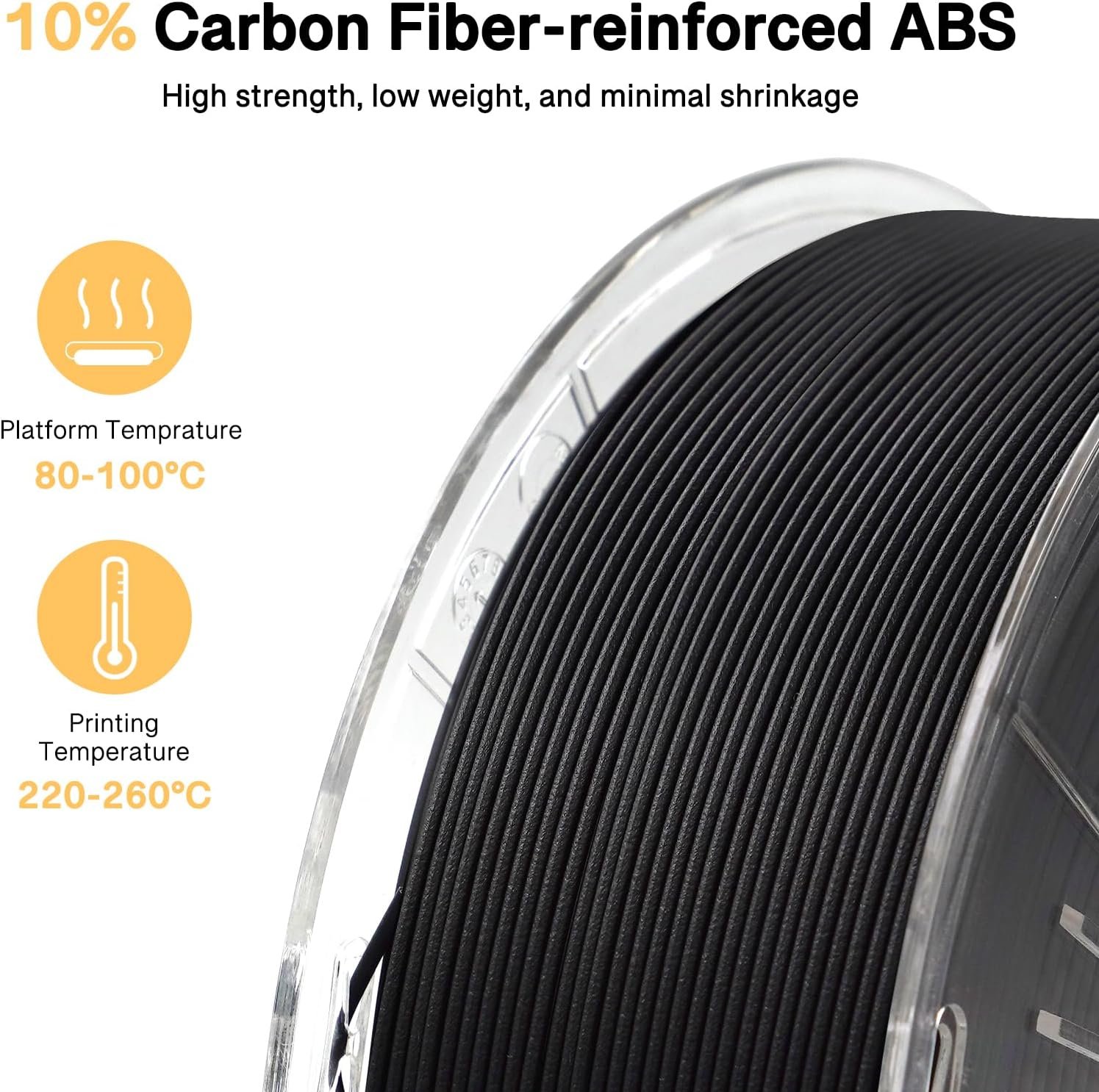

Enhanced ABS-CF for Superior Performance – Acrylonitrile Butadiene Styrene Reinforced with 10% carbon fiber, this ABS composite offers 15°C higher heat resistance and a flexural modulus exceeding 3000MPa, significantly outperforming standard ABS.
Compared to PLA-CF & PETG-CF – ABS-CF offers higher heat resistance, superior impact strength, and greater mechanical performance compared to PLA-CF and PETG-CF. It also supports a wider range of post-processing options.
Lightweight & Smooth Finish – ABS-CF is strong but light, making it great for lightweight parts. It prints with a smooth surface, perfect for projects that need a high-quality look.

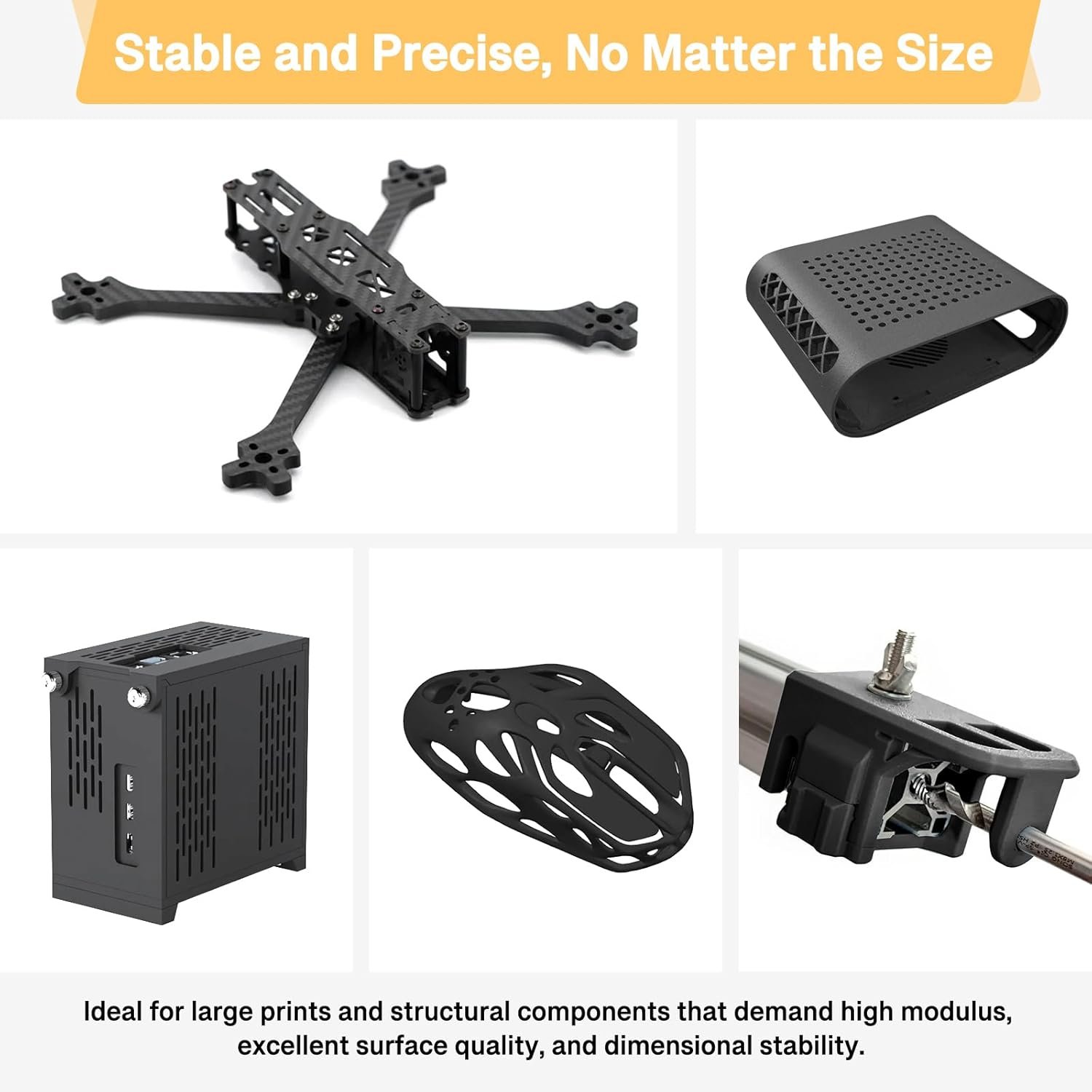

Industrial-Grade Heat-Resistant & High-Strength Parts – Ideal for structural engineering, automotive components, functional prototypes, mechanical parts, and lightweight yet durable applications.

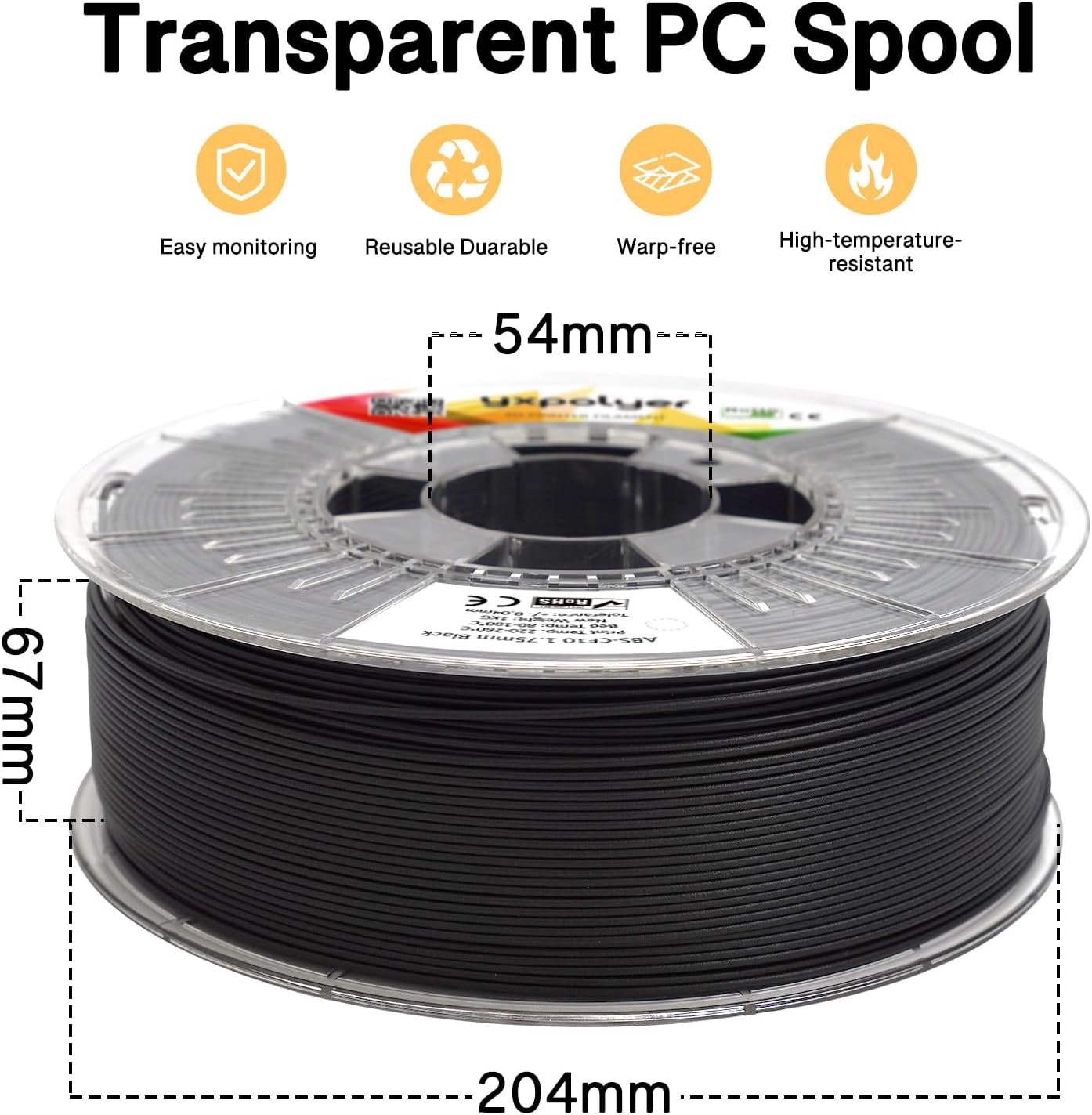

Transparent PC Spool – for easy filament monitoring, this high-temperature-resistant spool is durable, reusable, and warp-free, ensuring stability and long-term use for consistent 3D printing performance.
