Product Description
PETG-CF is a PETG based with chopped carbon fiber reinforced FFF material that improves warping resistance, reduces size shrinkage during printing and improves overhang surface quality while giving the material a frosted surface texture.
Recommended printing conditions
Nozzle Temperature: 240-260°C
Recommended Nozzle Diameter: 0.4-1.0mm
Recommended build surface treatment: Glass、PEI Film or Coating with PVP glue
Build plate temperature: 70-80 °C
Raft separation distance: 0.2-0.25mm
Cooling fan speed: ≤50%
Print speed: 30-60 mm/s
Retraction distance: 2-5 mm
Retraction speed: 1800-2400 mm/min
Printing Tips：
1 The wear resistance of copper nozzle is poor. It is recommended to use stainless steel or hardened steel nozzle to print, which can effectively improve the printing quality.
2 Please put filament into a dry box, which can effectively reduce the oozing, rough surface and so on.
Carbon Fiber Filled PETG: PETG-CF is a PETG filament filled with chopped carbon fiber, which improves the warpage resistance of the material and improves the surface quality of the drape surface. At the same time, it also gives the material a matte surface texture.
Wide Application: It features with higher strength and rigidity, less warpage and more resistant to wear comparing to the traditional PETG filament. Suitable for strong and flexible industrial parts, prosthetics, medical equipment and complex costumes etc.
Stable Dimensional Tolerance: Minimum tolerance and low warping to ensure consistent feeding and stable prints, no clogging, extremely high successful rate, resulting in printed parts that have an outstanding surface finish and are highly precise.
Tangle Free & No Plugging: Full 1KG 3D printer filament reel, perfect roundness and very tight diameter tolerance, does not overlap or tangle. Melt well, no cracking, no bubbles. feed smoothly and constantly without clogging the nozzle or extruder.

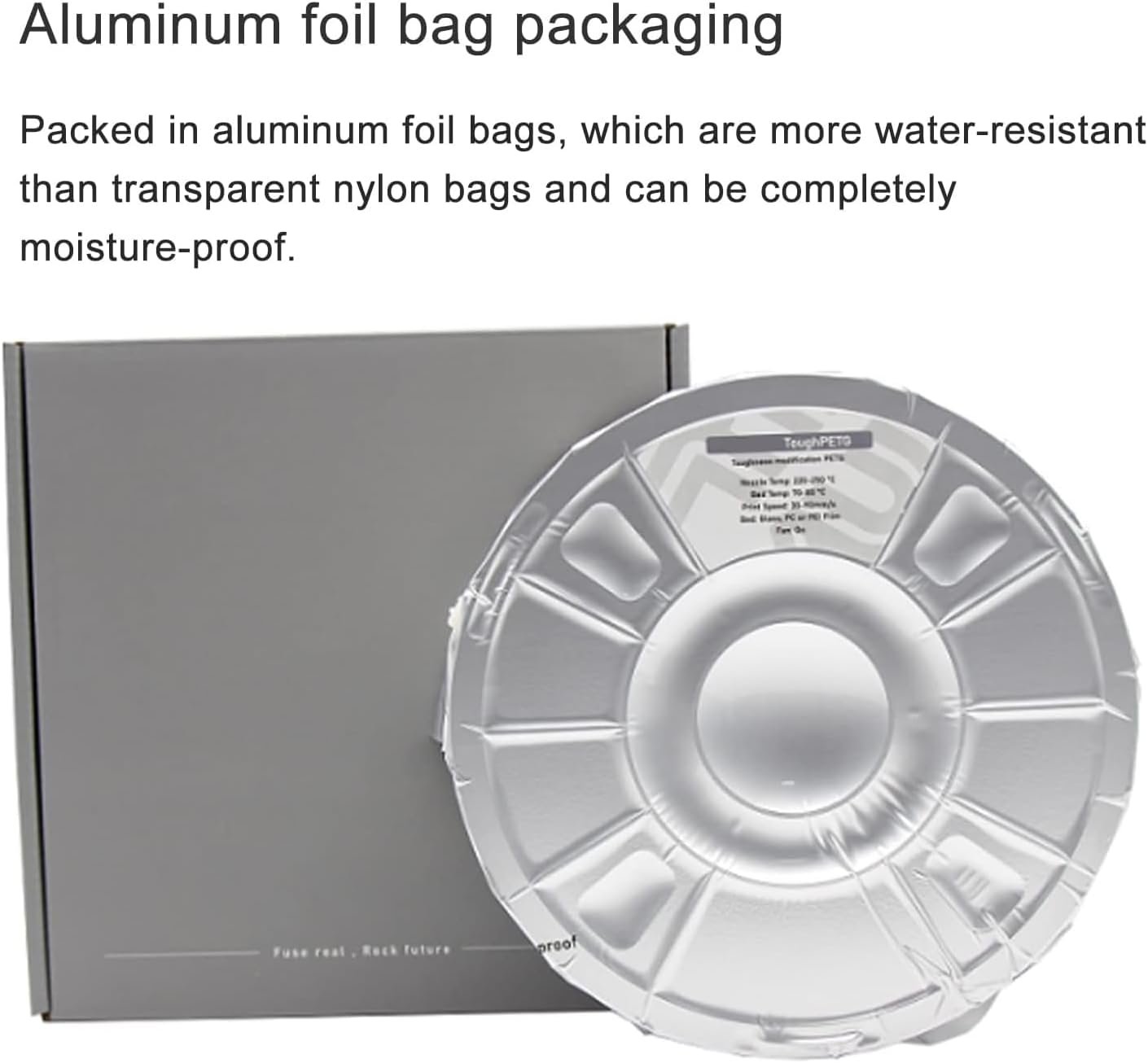

Vacuumed Sealed Packaging: PETG-CF is packaged in aluminum foil bags, which is more water-resistant than transparent nylon bags and can be completely moisture-proof. The aluminum foil bag has a built-in sealing strip, and the aluminum foil bag can be reused after the heat-sealing is torn, and the dry state of the material is prolonged.
